HikMicro Habrok Thermal Pro Binoculars

HikMicro Habrok Pro Binoculars

The HikMicro Habrok Pro Binoculars combine high-performance thermal imaging, a 4K day and night camera, laser rangefinding and image recording within a single binocular platform. Available in HQ50L and HX60LS variants, the range is designed for users who need long-range observation in daylight, darkness and challenging weather conditions without carrying multiple devices.

Both models feature a highly sensitive thermal sensor with NETD below 15mK, helping reveal subtle temperature differences that can be difficult to distinguish in rain, fog or changing environmental conditions. The integrated 4K optical channel provides a detailed colour image during the day and continues to deliver high-resolution viewing after dark when paired with the built-in infrared illumination.

While both models share the same core multi-spectrum concept, they differ significantly in thermal performance. The HQ50L uses a 640 × 512 thermal sensor with a 50mm F1.0 lens and a detection range of up to 2600m. The HX60LS moves to a 1280 × 1024 thermal detector with a 60mm F1.0 lens and extends detection range to 3100m, making it the highest-specification model in the Habrok Pro range.

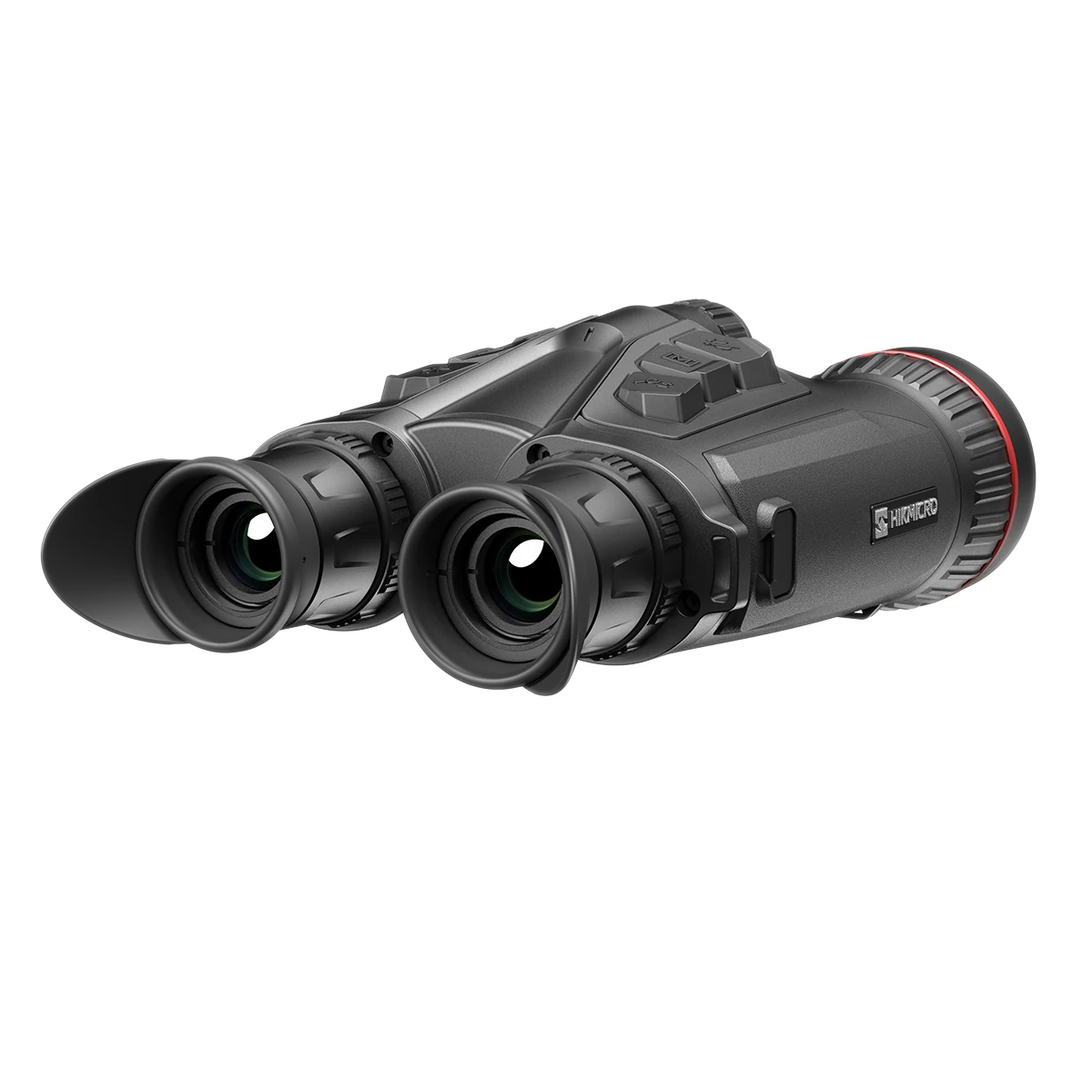

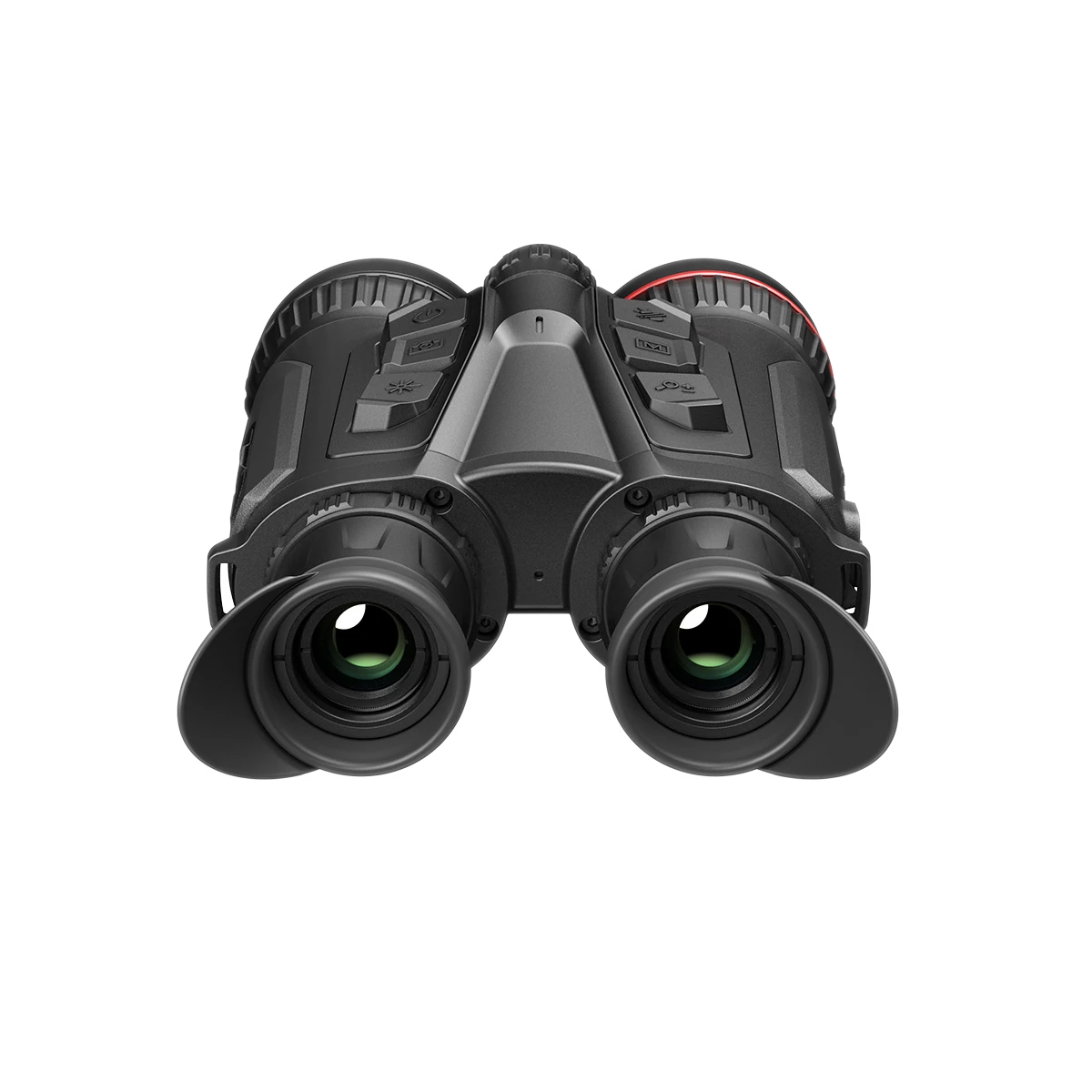

The binocular design allows a natural viewing experience through dual eyepieces with adjustable interpupillary distance, dioptre adjustment and a large 1920 × 1080 OLED display. Foldable rubber eyecups improve comfort during extended viewing sessions and also accommodate users who wear glasses.

Both models include an integrated 1000m laser rangefinder, GPS, digital magnetic compass, hotspot connectivity, image and video recording, audio recording and 64GB internal storage. Picture-in-Picture viewing, Hot Track functionality and HIKMICRO imaging technologies further enhance usability when observing distant subjects.

HikMicro Habrok Pro Binoculars Key Features

• Available in HQ50L and HX60LS variants with dedicated thermal specifications.
• NETD <15mK thermal sensitivity for improved detail recognition in difficult conditions.
• Integrated 4K UHD digital camera with 3840 × 2160 resolution.
• Built-in 1000m laser rangefinder with ±1m measurement accuracy.
• GPS, digital magnetic compass, Hot Track and Picture-in-Picture functions.
• 64GB internal EMMC storage with video, image and audio recording.

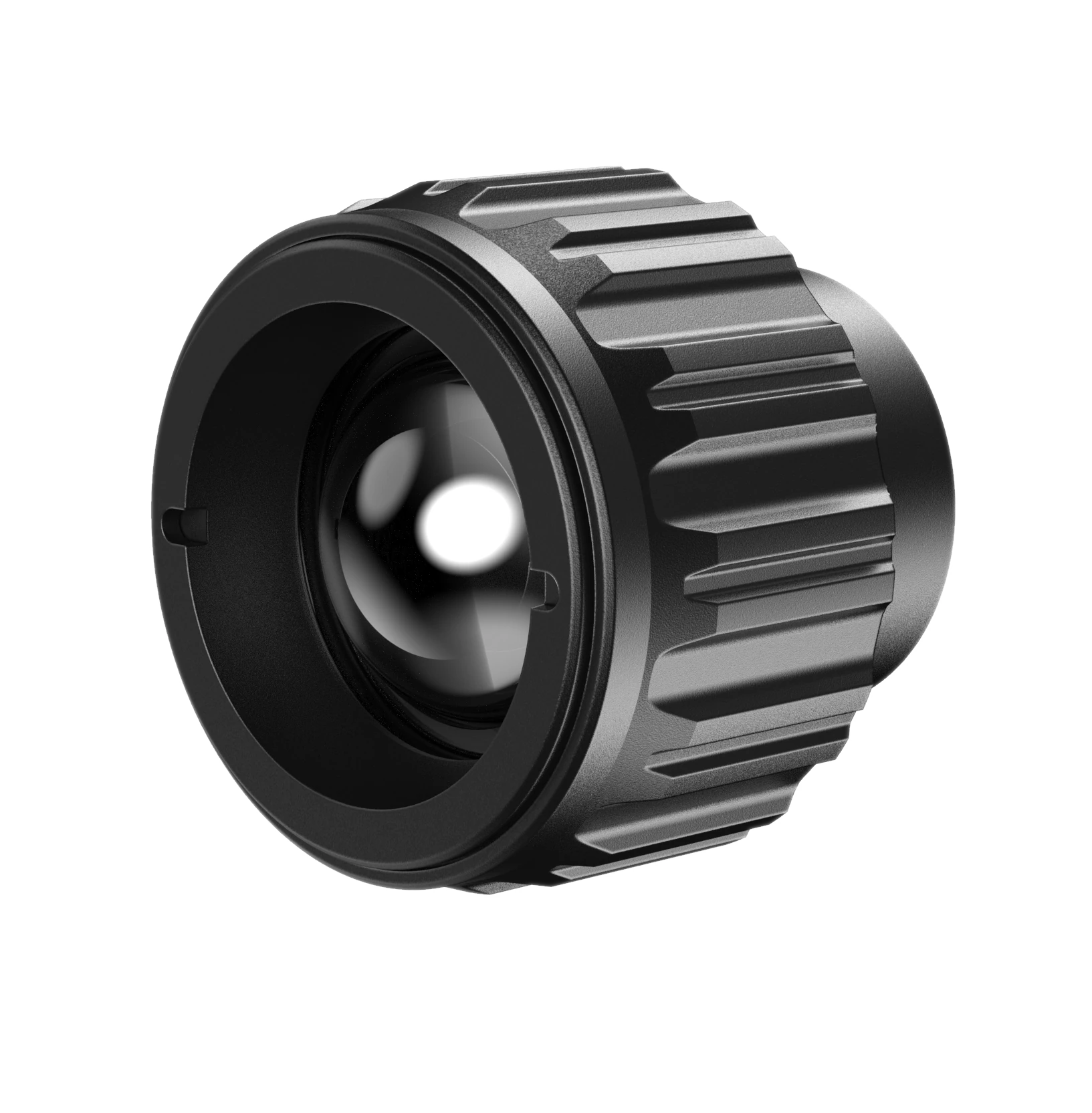

• Replaceable 850nm infrared illuminator for low-light and night observation.
• IP67-rated construction for reliable outdoor use.

Built for demanding outdoor environments, the Habrok Pro range features robust construction, IP67 protection and replaceable rechargeable battery packs. The HQ50L provides up to 10.5 hours of operation, while the HX60LS delivers approximately 5.5 hours from its battery pack. Whether observing wildlife, monitoring open ground, searching for heat signatures or operating in low-light conditions, the HikMicro Habrok Pro Binoculars bring thermal and digital observation together in a single compact system.

For users choosing between the two models, the HQ50L offers an excellent balance of thermal performance, battery life and overall versatility, while the HX60LS delivers the highest thermal resolution and longest detection range available within the Habrok Pro series.

The strength of the Habrok Pro range lies in its ability to switch between thermal and optical observation almost instantly. Users can scan large areas using thermal imaging before changing to the 4K optical channel for additional visual detail when conditions allow.

Rather than carrying separate thermal and digital devices, rangefinding equipment and recording tools, both Habrok Pro models integrate these functions within a single system. This simplifies operation while reducing the amount of equipment needed in the field.

The choice between models largely comes down to thermal performance requirements.  The HQ50L combines a 640 × 512 thermal sensor with impressive long-range performance, while the HX60LS delivers the highest thermal resolution and longest detection range in the Habrok Pro range.

Which HikMicro Habrok Pro Binoculars Should I Choose?

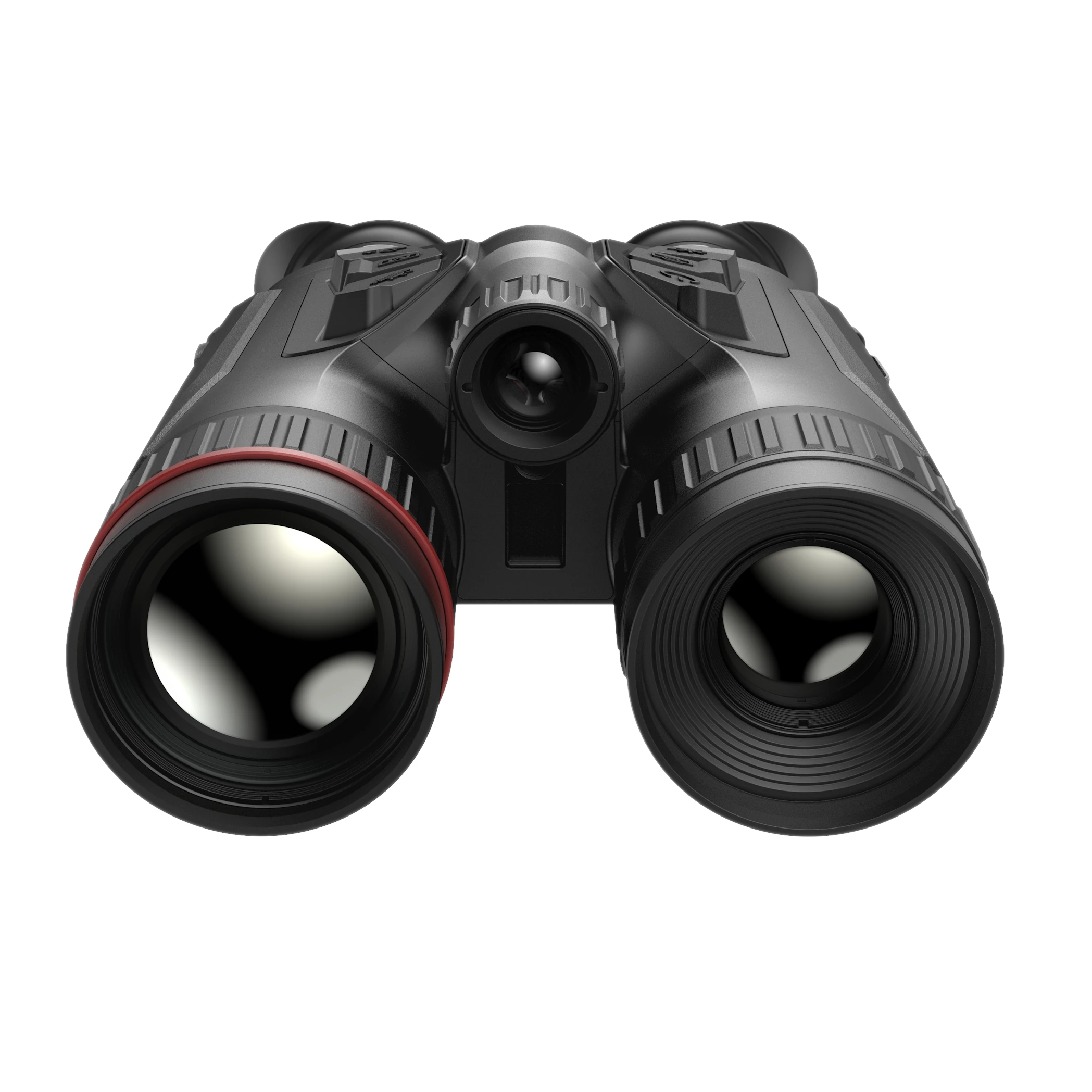

The HQ50L combines a 640 × 512 thermal detector, 50mm F1.0 thermal lens and 4K optical camera. With a detection range of up to 2600m and battery life of up to 10.5 hours, it offers a strong balance of performance, portability and endurance.

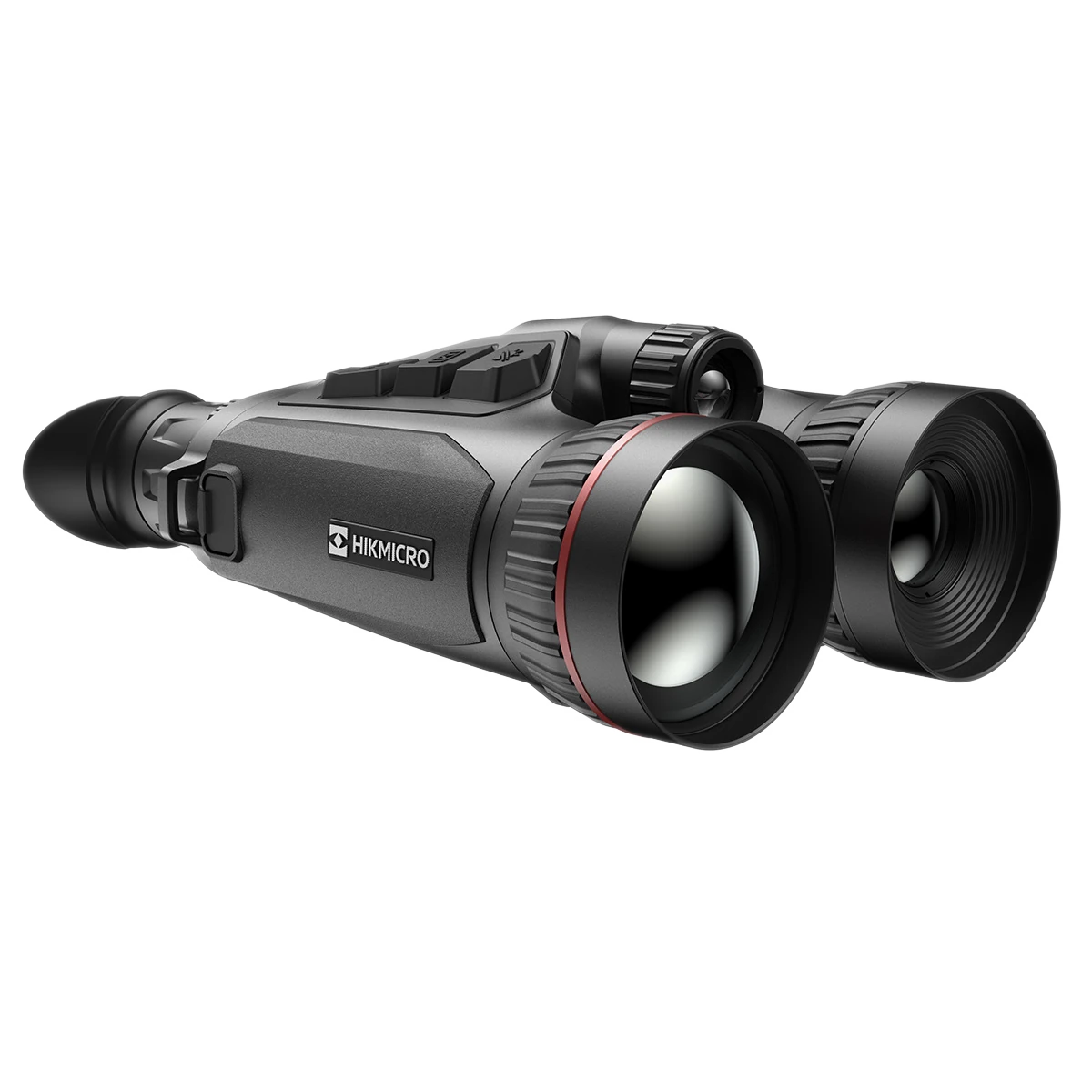

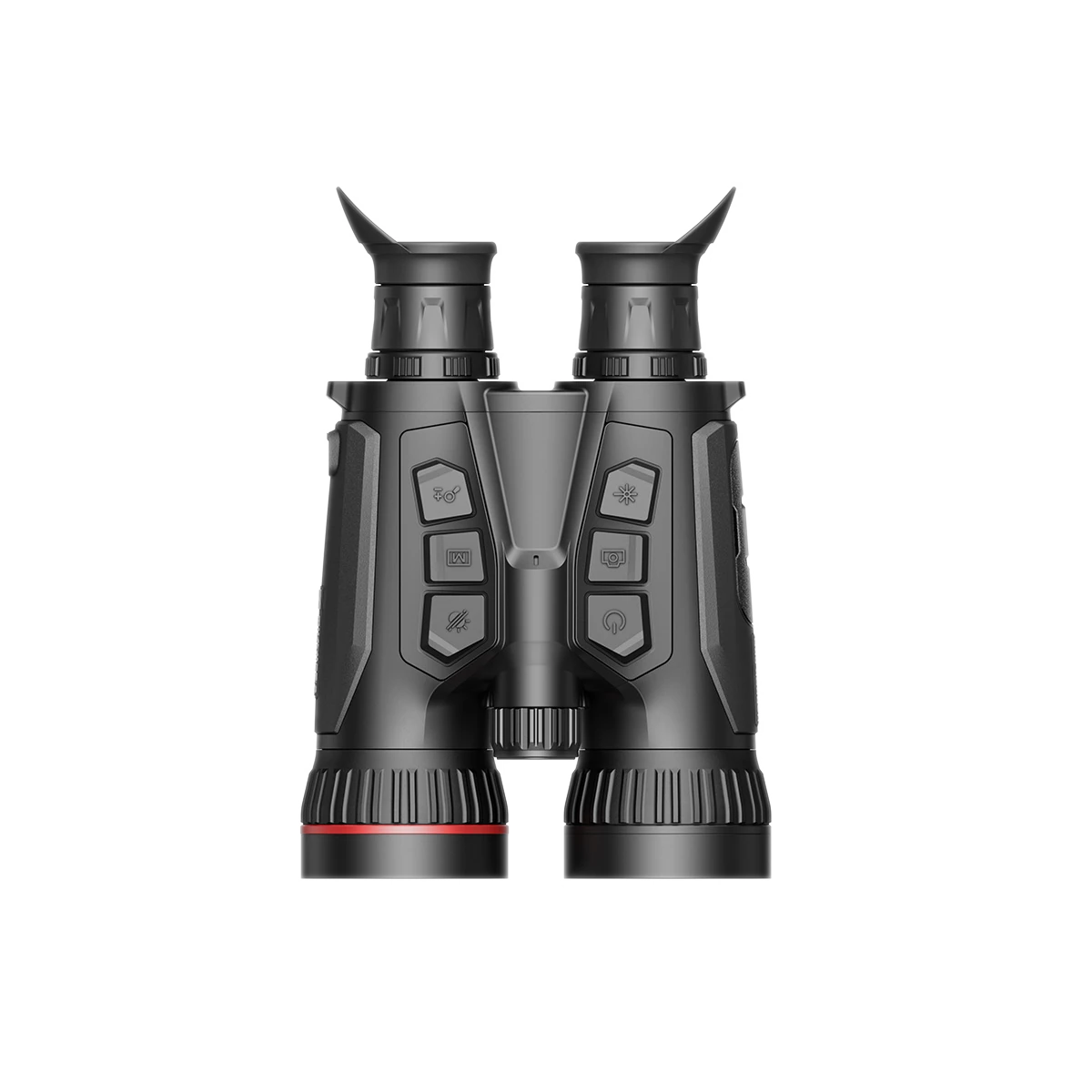

The HX60LS features a higher-resolution 1280 × 1024 thermal detector, a 60mm F1.0 thermal lens and a detection range of up to 3100m.  As the flagship model in the Habrok Pro range, the HX60LS delivers the highest level of thermal detail and long-range detection capability.

Frequently Asked Questions

Performance & Model Differences

Q: What is the difference between the HQ50L and HX60LS?
A: The HQ50L uses a 640 × 512 thermal detector with a 50mm lens, while the HX60LS uses a 1280 × 1024 detector with a 60mm lens.

Q: What is the main advantage of the HX60LS over the HQ50L?
A: The HX60LS uses a 1280 × 1024 thermal detector and extends thermal detection range to 3100m

Q: Which model has the highest thermal resolution?
A: The HX60LS has the highest thermal resolution with a 1280 × 1024 thermal detector.

Q: Which model has the longest detection range?
A: The HX60LS detects heat signatures up to 3100m, while the HQ50L is rated to 2600m.

Q: Which model offers longer battery life?
A: The HQ50L offers up to 10.5 hours of operation. The HX60LS is rated for approximately 5.5 hours.

Optics, Imaging & Observation

Q: Do both models use the same 4K digital camera?
A: Yes. Both models use a 3840 × 2160 4K UHD CMOS digital camera.

Q: Can the binoculars be used in complete darkness?
A: Yes. Both models include a replaceable 850nm infrared illuminator for night-time observation.

Q: Do both models include a laser rangefinder?
A: Yes. Both models feature a Class 1 laser rangefinder with a maximum measuring range of 1000m.

Q: Can images and videos be recorded?
A: Yes. Both models support video recording, image capture and audio recording using the built-in 64GB storage.

Features, Connectivity & Durability

Q: Do the HikMicro Habrok Pro Binoculars have GPS?
A: Yes. Both models include GPS and a digital magnetic compass.

Q: Are the HikMicro Habrok Pro Binoculars waterproof?
A: Both models are rated IP67 for outdoor use in demanding weather conditions.

Q: Can content be shared with a mobile device?
A: Yes. Both models feature hotspot connectivity and work with the HIKMICRO Sight App.

Q: What warranty is included?
A: Both the HQ50L and HX60LS are supplied with a 3-year HIKMICRO warranty.

Technical Specification

Response Waveband8μm to 14μm8μm to 14μm

Feature	HQ50L	HX60LS
Product Name	HikMicro Habrok Pro Binoculars HQ50L	HikMicro Habrok Pro Binoculars HX60LS
Thermal System
Thermal Sensor	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays
Thermal Resolution	640 × 512	1280 × 1024
Frame Rate	50Hz	50Hz
Pixel Pitch	12μm	12μm
NETD	<15mK	<15mK
Response Waveband	8μm-14μm	8μm-14μm
Thermal Lens	50mm F1.0	60mm F1.0
Detection Range	2600m	3100m
Thermal Magnification	4.3x-20.0x	2.6x-20.0x
Minimum Focus Distance	5m	3m
Thermal Field of View	8.8° × 5.3°	14.6° × 8.8°
Optical System
Digital Sensor	1/1.8″ Progressive Scan CMOS	1/1.8″ Progressive Scan CMOS
Digital Resolution	3840 × 2160	3840 × 2160
Digital Lens	60mm F2.2	60mm F2.2
Digital Magnification	5.5x-22.0x	5.5x-22.0x
Digital Field of View	7.3° × 4.1°	7.3° × 4.1°
Night Viewing Range	400m	400m
Smart IR	Yes	Yes
Replaceable IR Illuminator	Yes	Yes
IR Wavelength	850nm	850nm
Display & Imaging
Display	0.49″ OLED 1920 × 1080	0.49″ OLED 1920 × 1080
Contrast Adjustment	Yes	Yes
Brightness Adjustment	Yes	Yes
Tone Adjustment	Cold / Warm	Cold / Warm
Zoom Pro	Yes	No
Image Pro	Image Pro 2.0	Image Pro 3.0
Sync Pro	Not Listed	Yes
Recording & Connectivity
Video Recording	Yes	Yes
Photo Capture	Yes	Yes
Audio Recording	Yes	Yes
Storage	64GB EMMC	64GB EMMC
Hotspot Connectivity	Yes	Yes
GPS	Yes	Yes
Digital Compass	Yes	Yes
Picture-in-Picture	Yes	Yes
Hot Track	Yes	Yes
Local Album	Yes	Yes
Standby Mode	Yes	Yes
Power & Battery
Battery Type	Replaceable Li-ion Battery Pack	Replaceable Li-ion Battery Pack
Battery Life	Up to 10.5 hours	Up to 5.5 hours
Type-C Power Supply	5V/9V DC, 3A	5V/9V DC, 3A
Physical Specifications
Protection Rating	IP67	IP67
Dimensions	142.9 × 79.7 × 230.5mm	152.8 × 81.95 × 231.5mm
Weight	975g	1050g
Interpupillary Distance	60mm-74mm	60mm-74mm
Operating Temperature	-30°C to +55°C	-30°C to +55°C
Mounting Adapter	1/4″-20 UNC	1/4″-20 UNC
Exit Pupil	8mm	8mm
Eye Relief	15mm	15mm
Dioptre Adjustment	-5D to +3D	-5D to +3D
Laser Rangefinder
Laser Class	Class 1	Class 1
Laser Wavelength	905nm	905nm
Maximum Range	1000m	1000m
Measurement Accuracy	±1m	±1m
Minimum Range	10m	10m
Warranty	3 Years	3 Years

Hikmicro Habrok Pro HQ50L Datasheet V5.5.94

Hikmicro Habrok Pro HX60LS Datasheet V5.5.136
