HikMicro Lynx 2.0 Thermal Monocular

HikMicro Lynx 2.0 Thermal Monocular

The HikMicro Lynx 2.0 Thermal Monocular range delivers powerful thermal detection for reliable performance in total darkness, fog, and challenging terrain. Available in four models – LH15, LH19, LH25 and LH35 – the range covers everything from close-range scanning to long-distance detection, giving you the freedom to choose the right level of performance for your needs.

Every HikMicro Lynx 2.0 Thermal Monocular is built around a 384 × 288 thermal sensor with a 12µm pixel pitch and less than 20mK NETD. This highly sensitive core detects even the smallest heat differences, creating crisp, high-contrast images that reveal hidden movement, animals, people, and terrain features normally invisible to the human eye. With a 50Hz frame rate, images appear smooth and natural, even when tracking moving targets.

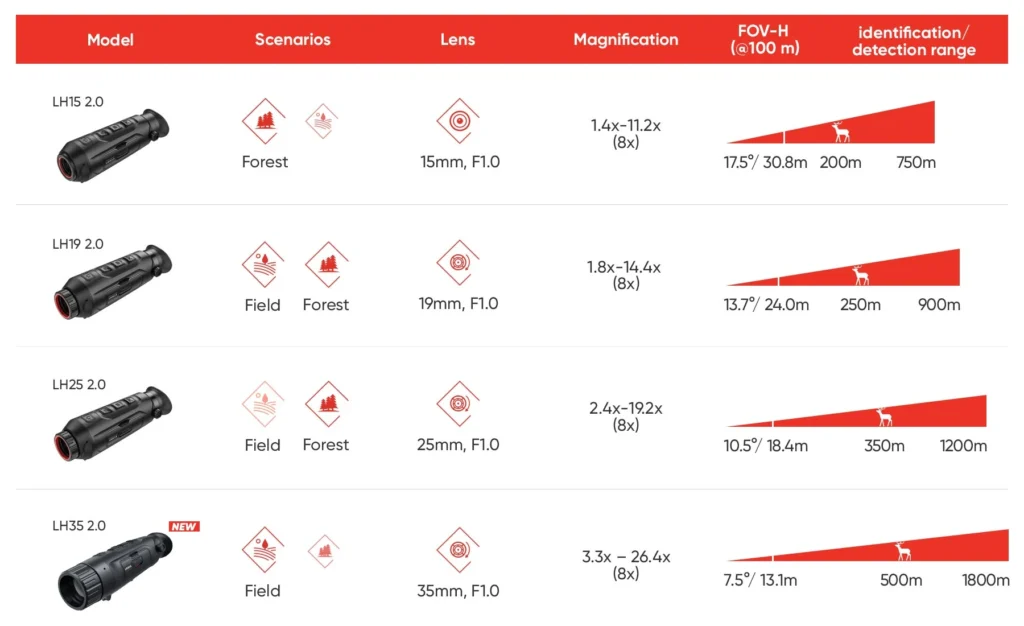

The LH15 offers a focus-free design for fast, simple use at shorter distances, with detection up to 750 metres. The LH19, LH25 and LH35 introduce manual focus for precise long-range clarity, extending detection capability up to 1800 metres on the LH35. In simple terms, the higher the model number, the further and more detailed your thermal reach becomes.

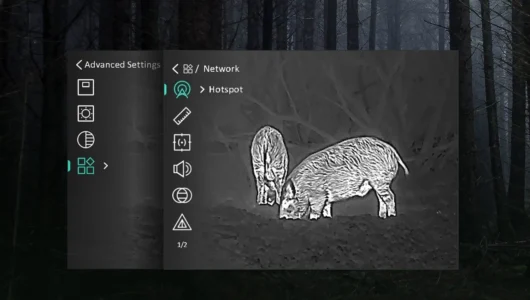

A bright 0.39-inch OLED display provides a sharp viewing experience in all light conditions. Multiple colour palettes – including White Hot, Black Hot, Red Hot and Fusion – allow you to tailor the image style to your surroundings and personal preference. Features such as Picture-in-Picture, Hot Track and Distance Measurement add practical value in the field, helping you assess targets and movement quickly and accurately.

HikMicro Lynx 2.0 Thermal Monocular Key Features

• 384 × 288 Thermal Sensor – High-sensitivity VOx core with 12µm pixel pitch and sub-20mK NETD for detailed imaging
• Detection Range 750–1800m – LH15 to LH35 models cover short to long-range observation
• Focus Options – Focus-free on LH15; manual focus on LH19, LH25, LH35 for precision
• OLED Display – 0.39-inch high-contrast screen with four thermal colour palettes
• Recording & Connectivity – Photo and video capture with audio, WiFi streaming via HIKMICRO Sight App
• Practical Field Tools – Picture-in-Picture, Hot Track, Distance Measurement for enhanced situational awareness
• Compact & Durable Design – Magnesium alloy body with soft eyecup, ergonomic buttons, IP67-rated protection
• Extended Battery Life – Removable rechargeable Li-ion battery with up to 6.5 hours runtime and USB-C charging support

The magnesium alloy housing offers excellent durability while remaining compact and lightweight. The ergonomic shape fits naturally in the hand, and the soft rubber eyecup improves comfort during extended use. Replaceable, rechargeable Li-ion batteries provide up to 6.5 hours of operation, and USB-C support allows for external power in the field making the HikMicro Lynx 2.0 Thermal Monocular a smart choice.

Built-in WiFi connects seamlessly to the HIKMICRO Sight App, allowing easy control, live viewing, and image or video recording with audio. Whether you are out observing wildlife, managing land, assisting in search operations, or enhancing nighttime security, the HikMicro Lynx 2.0 Thermal Monocular range gives you the confidence to see more, react faster, and perform at a higher level in complete darkness.

Frequently Asked Questions

Q: What materials are used in the HikMicro Lynx 2.0 Thermal Monocular range?
A: Rugged magnesium alloy body with soft rubber eyecup for comfort.

Q: Are there differences between the models?
A: Yes. LH15 is focus-free; LH19, LH25, LH35 offer manual focus. Detection ranges increase with model number.

Q: How far can each model detect?
A: LH15 up to 750m, LH19 up to 900m, LH25 up to 1200m, LH35 up to 1800m (human-sized target).

Q: How durable is the Lynx 2.0 range?
A: IP67-rated for dust and water resistance; magnesium chassis resists knocks and rough handling.

Q: How do I clean and maintain the monocular?
A: Wipe with a dry cloth; keep lenses clean and free from dust or debris.

Q: Can I record images or videos on the HikMicro Lynx 2.0 Thermal Monocular?
A: Yes, all models support photo/video recording with audio and WiFi app connectivity.

Q: Which devices are compatible with the HIKMICRO Sight App?
A: Most smartphones and tablets via WiFi; allows live viewing, recording, and device control.

Q: How long does the battery last?
A: Up to 6.5 hours with CVBS and hotspot functions off; all models use removable rechargeable Li-ion batteries.

Q: Is the display comfortable for long-term use?
A: Yes, the OLED display is bright, high-contrast, and the soft eyecup reduces stray light.

Q: What are the main use cases?
A: Wildlife observation, ecological survey, hunting, search & rescue, security, and land management.

HikMicro Lynx 2.0 Thermal Monocular Technical Specification

Sensor & Imaging

Optics & Viewing

Display & Visual Controls

Eyepiece

Recording & Functions

Connectivity & Storage

Power & Battery

Environmental & Build

Download the manual here
