HikMicro Lynx S Thermal Monocular
Ex VAT
Out of stock
Hikmicro Lynx S Thermal Monocular
Compact, high-performance thermal imaging for hunting, hiking, and field observation.
- Sensitive VOx sensors reveal subtle heat differences
- Smooth 50Hz display for tracking moving subjects
- Picture-in-Picture mode highlights targets precisely
- IP67 waterproof and dustproof for rugged conditions
Hikmicro Lynx S Thermal Monocular
The Hikmicro Lynx S Thermal Monocular offers clear thermal performance for users who need reliable imaging in varied outdoor environments. Using sensitive VOx sensors with a <35mK NETD rating, helping users detect subtle temperature differences in low-contrast scenes.
The LC06S features a 160×120 sensor paired with a 6.2mm lens for short-range scanning. The LE10S upgrades to a 256×192 sensor and a 9.7mm lens, producing higher detail and longer-range recognition. Both deliver smooth 50Hz imaging for confident field use.

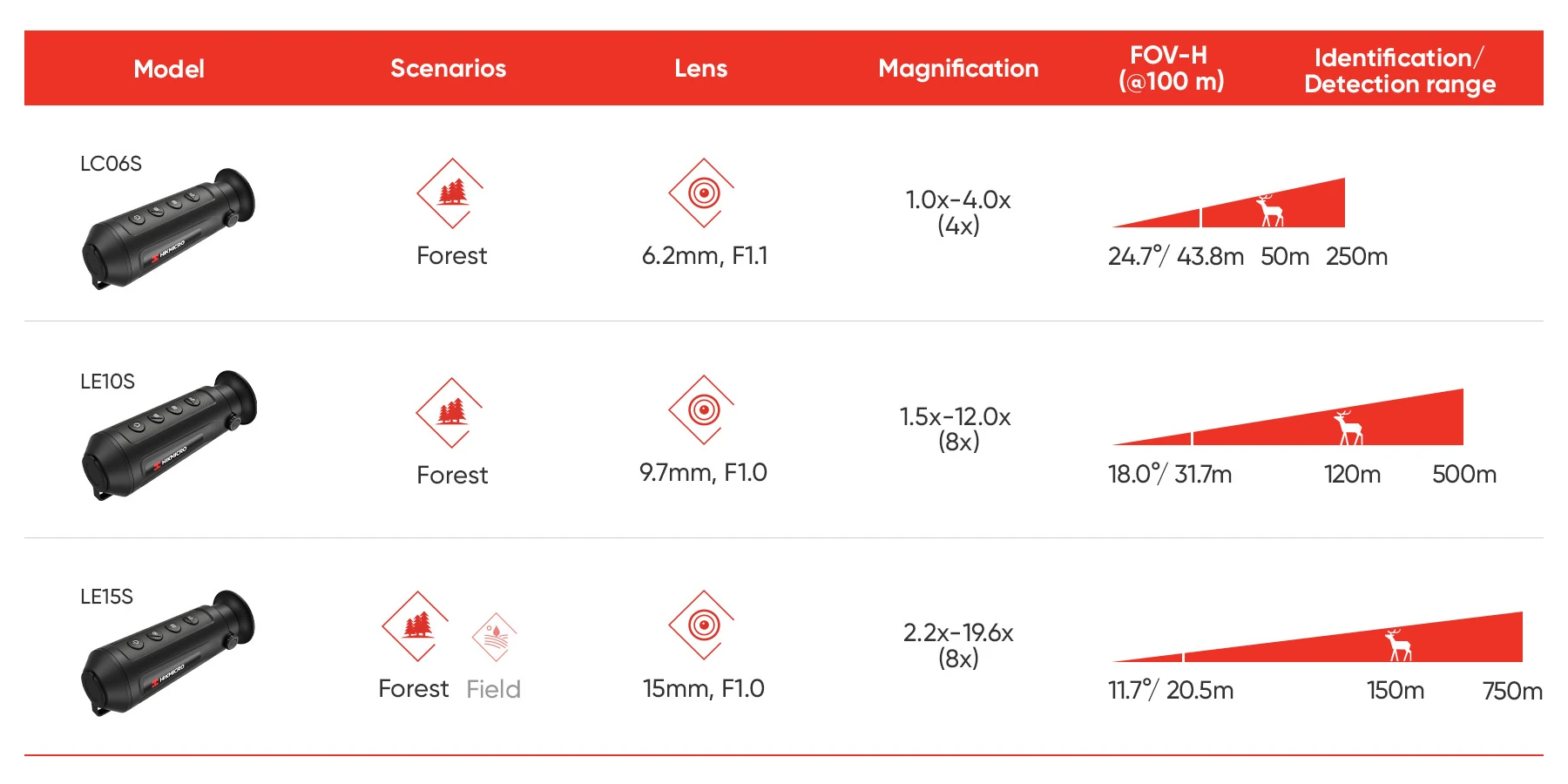

Magnification varies across the Lynx S range. The LC06S provides 1×–4× magnification, giving wide close-range awareness that suits woodland and farmyard tasks. The LE10S offers 1.5×–12× magnification, supporting confident observation of distant subjects in open ground. Detection range also differs, with the LC06S reaching 250 metres and the LE10S extending to 500 metres. These figures translate into dependable spotting across mixed terrain.
Advanced image processing improves visual clarity. Adaptive AGC balances brightness, DDE enhances edges, and 3D DNR reduces noise to maintain clean outlines. Users can select colour palettes to match conditions. Picture-in-Picture mode provides precise framing, and hot tracking highlights the warmest point in view. Distance measurement adds practical range awareness for users working in dynamic environments.
Hikmicro Lynx S Key Features
- Sensitive VOx sensors reveal small temperature differences in low-contrast scenes.
- Smooth 50Hz refresh helps users track moving subjects comfortably.
- Picture-in-Picture mode gives precise target framing for detailed inspection.
- Hot tracking highlights warm objects quickly for fast identification.
- Distance measurement supports on-the-spot range estimation.
- Colour palettes help users adjust image style to suit differing environments.
- LC06S magnification range suits close scanning and confined terrain.
- LE10S magnification range supports distant observation in open landscapes.

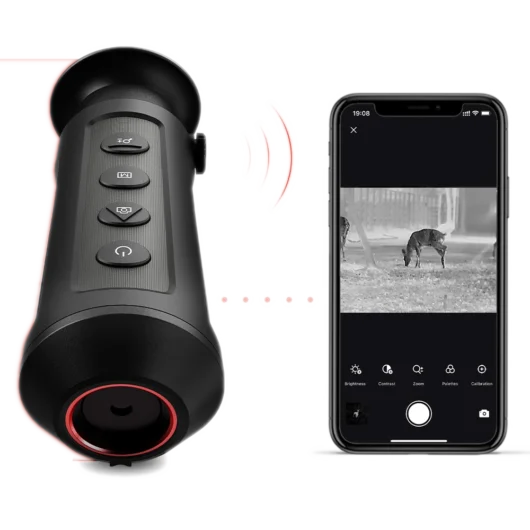

The Lynx S series supports built-in video recording, snapshots, and audio capture. Eight gigabytes of internal storage hold footage for later review. Wi-Fi connectivity links the monocular to the HIKMICRO Sight app, allowing live view, parameter adjustment, file transfer, and firmware updates. These tools benefit users who require flexible documentation or shared viewing.
Battery performance varies by model. The LC06S operates for up to ten hours, while the LE10S offers up to eight hours with hotspot disabled. Type-C charging and external power support extend field use. IP67 protection ensures reliable operation in rain, mud, and dusty ground.
Lightweight housings keep the monocular comfortable during long sessions. The Hikmicro Lynx S Thermal Monocular provides dependable thermal performance and versatile field capability for varied outdoor tasks.
Frequently Asked Questions
Q: What sensor does the Hikmicro Lynx S use?
A: The Lynx S uses a VOx uncooled thermal sensor, model-dependent in resolution and pixel pitch.
Q: What is the maximum resolution?
A: LC06S is 160×120, LE10S is 256×192, delivering clear thermal images.
Q: How far can it detect targets?
A: LC06S reaches up to 250 metres, LE10S up to 500 metres under ideal conditions.
Q: What is the battery life?
A: LC06S runs 10 hours, LE10S runs 8 hours with hotspot off, 6 hours with hotspot on.
Q: Is the Lynx S waterproof?
A: Yes, both models are IP67 rated, fully dustproof and water-resistant.
Q: Can it record video and audio?
A: Yes, both models support video recording, snapshots, and audio capture.
Q: Does it support app connectivity?
A: Yes, Wi-Fi works with HIKMICRO Sight app for remote control and file sharing.
Q: Can it be used for hunting?
A: Yes, the Lynx S series is suitable for hunting, wildlife observation, and field scanning.
Q: Can it use external power?
A: Yes, Type-C charging and external power support extend operational time.
Q: What is the warranty on the Hikmicro Lynx S?
A: No, both models include a three-year UK warranty.
Technical Specifications
The table below shows the main features and differences of the Lynx S series models.
Optical & Sensor System
| Feature | LC06S | LE10S |
| Image Sensor | VOx Uncooled Focal Plane Array | VOx Uncooled Focal Plane Array |
| Max. Resolution | 160 × 120 | 256 × 192 |
| Frame Rate | 50 Hz | 50 Hz |
| Pixel Interval | 17 μm | 12 μm |
| Response Waveband | 8 μm to 14 μm | 8 μm to 14 μm |
| NETD | <35 mK | <35 mK |
| Lens (Focal Length) | 6.2 mm, F1.1 | 9.7 mm, F1.0 |
| Focus Mode | Focus Free | Focus Free |
| Detection Range | 250 m | 500 m |
| Min. Focusing Distance | 1 m | 4 m |
| Magnification | 1×–4× | 1.5×–12× |
| Field of View (H × V) | 24.7° × 18.7° / 43.8 m × 32.9 m @100m | 18.0° × 13.6° / 31.7 m × 23.8 m @100m |
Display & Imaging
| Feature | LC06S | LE10S |
|---|---|---|
| Display | 800 × 600, 0.32-inch OLED | 800 × 600, 0.32-inch OLED |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
| Flat Field Correction (FFC) | Auto, Manual, External | Auto, Manual, External |
| Exit Pupil | 20 mm | 20 mm |
| Eye Relief | 6 mm | 6 mm |
| Diopter Adjustment | -5D to +4D | -5D to +4D |
| Brightness Adjustment | Yes | Yes |
| Tone Adjustment | Cold, Warm | Cold, Warm |
| Contrast Adjustment | Yes | Yes |
Recording & Software
| Feature | LC06S | LE10S |
|---|---|---|
| Video Recording | Yes | Yes |
| Snapshot Capture | Yes | Yes |
| Audio Recording | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in 8GB | Built-in 8GB |
| Picture-in-Picture (PIP) | Yes | Yes |
| Hotspot Functionality | Yes | Yes |
| Hot Track | Yes | Yes |
| Distance Measurement | Yes | Yes |
Power & Connectivity
| Feature | LC06S | LE10S |
|---|---|---|
| Battery Type | Rechargeable Lithium | Rechargeable Lithium |
| Battery Life | 10h (LC06S) | 8h / 6h (LE10S) |
| Charging Interface | Type-C | Type-C |
| Supports External Power | Yes | Yes |
Durability
| Feature | LC06S | LE10S |
|---|---|---|
| Protection Level | IP67 | IP67 |
Physical Specification
| Feature | LC06S | LE10S |
|---|---|---|

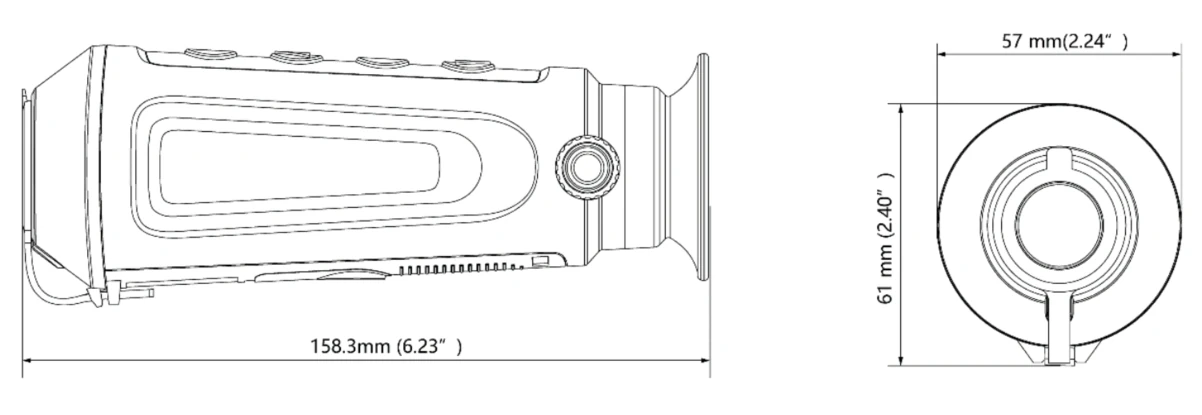

| Dimensions | 158.4 × 60.4 × 57 mm | 158.3 × 61 × 57 mm |
| Operating Temperature | -20°C to 55°C | -20°C to 55°C |
| Weight | 250 g | 260 g |
