HikMicro Stellar 3.0 Thermal Riflescope

HIKMICRO Stellar 3.0 Thermal Riflescope

The HIKMICRO Stellar 3.0 Thermal Riflescope delivers precision thermal imaging, integrated laser rangefinding, and ballistic correction in a traditional 30mm scope body. It provides professional hunters with a technically advanced system while maintaining the familiar handling of a classic day optic.

Built for demanding UK field use, the Stellar 3.0 range combines high-end sensor architecture with intelligent image processing. Each model balances resolution, sensitivity, and optical reach to suit different shooting environments.

High-End Thermal Detector and Sensitivity

The SH35L3.0 and SH50L3.0 models use 384×288 resolution sensors with <15mK NETD sensitivity. The SQ35L3.0 and SQ50L3.0 step up to 640×512 resolution with the same <15mK rating. The SX60L3.0 uses a 1280×1024 sensor with <18mK NETD, while the SX60LS3.0 improves sensitivity to <15mK at 1280 resolution.

Lower NETD values mean the scope detects smaller temperature differences. In practical terms, that produces clearer separation between quarry and background in damp or misty conditions.

All HIKMICRO Stellar 3.0 Thermal Riflescope models operate at 50Hz except the SX60L3.0, which runs at 25Hz. A higher refresh rate provides smoother motion tracking when scanning or following moving targets.

Image Processing and Shutterless Stability

HSIS (HIKMICRO Shutterless Image System) shutterless technology is present across the range. It removes the traditional calibration freeze seen in mechanical shutter systems, keeping the image live during use.

Image Pro 2.0 operates on SH and SQ models. Image Pro 3.0 operates on the SQ35L3.0 and SX60LS3.0. These algorithms enhance edge definition and contrast automatically. Zoom Pro is available across the series and sharpens digitally magnified images to reduce pixelation.

OLED Display and Precision Zeroing

Every HIKMICRO Stellar 3.0 Thermal Riflescope uses a 1.03-inch 2560×2560 OLED display. The circular viewing layout mirrors a conventional optical scope and reduces eye fatigue during extended observation.

Fine 1.3cm @100m click adjustments are available on models where specified, including the SH35L3.0 and SQ35L3.0. This allows precise point-of-impact correction. Quick zeroing works directly on the device and via the HIKMICRO SIGHT app.

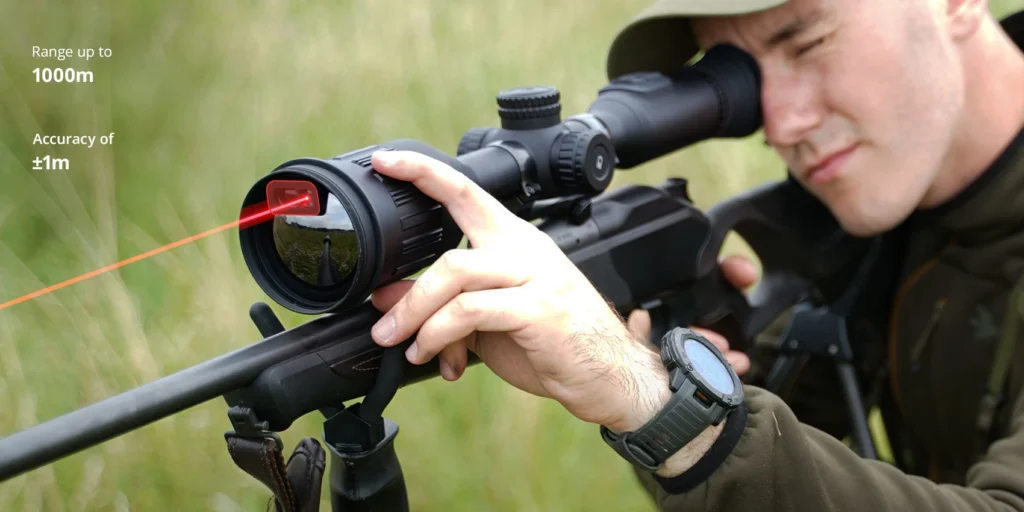

Integrated LRF and Ballistic Calculation

All listed models include a built-in 1000m laser rangefinder integrated into the objective lens. The LRF provides ±1m accuracy and feeds data into the onboard ballistic calculator.  The ballistic system calculates holdover and displays the corrected aiming point. This assists with accurate shot placement at varying distances, particularly in low light or complete darkness.

Construction, Power and Runtime Differences

All models feature IP67-rated magnesium alloy housings with 1000g/0.4ms shock resistance. This ensures compatibility with common centrefire calibres.  Most models deliver up to 9 hours of runtime using two internal batteries plus one 18650 external cell. The SX60LS3.0 provides up to 6.5 hours at 50Hz with the LRF active.

The HIKMICRO Stellar 3.0 Thermal Riflescope range suits deer managers, pest controllers, and serious night hunters who require scalable resolution and integrated ballistic precision.

HIKMICRO Stellar 3.0 Thermal Riflescope Key Features

• 384px, 640px, and 1280px 12μm thermal sensors
• <15mK sensitivity on most models; <18mK on SX60L3.0
• 50Hz refresh rate on all except SX60L3.0 (25Hz)
• HIKMICRO Shutterless Image System across the range
• Image Pro 2.0 or 3.0 depending on model
• Integrated 1000m LRF on all listed variants
• Ballistic calculation with holdover display
• 30mm traditional tube mounting

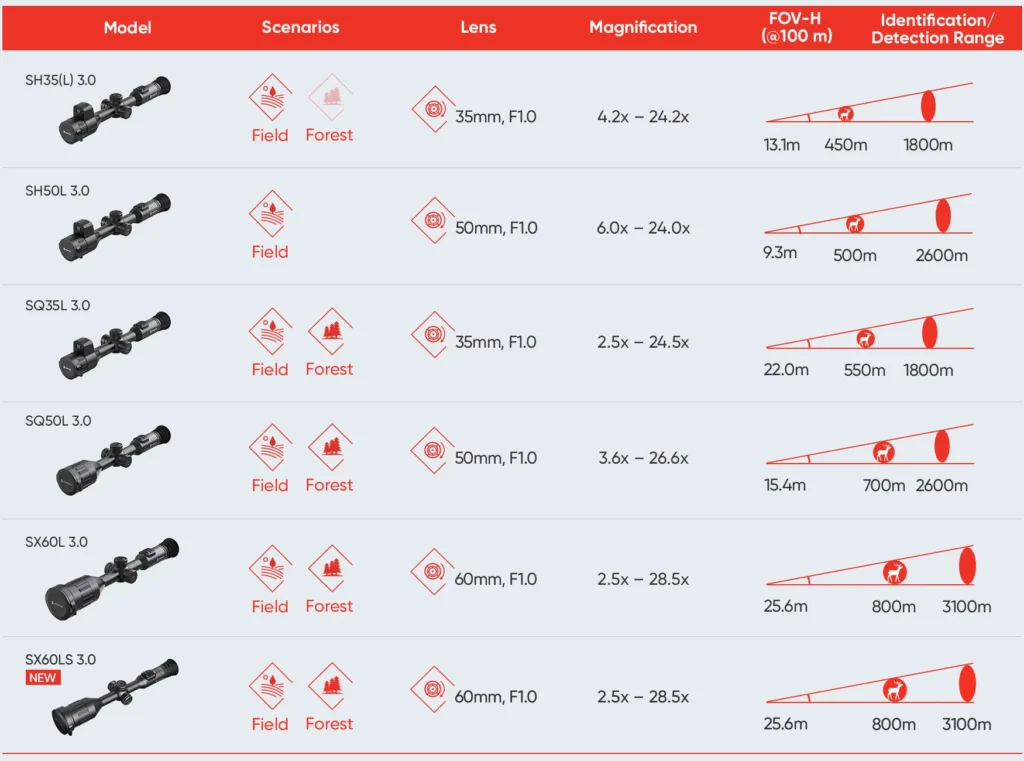

The SH models prioritise affordability with strong woodland performance. The SQ models improve mid-range identification through higher resolution. The SX 1280px models maximise image detail and digital zoom capability for extended detection up to 3100m.  The HIKMICRO Stellar 3.0 Thermal Riflescope platform support onboard recording, recoil-activated capture, 64GB storage, Wi-Fi hotspot connectivity, and SIGHT app integration.

Frequently Asked Questions

Thermal Sensor & Imaging

Q: What resolutions are available?
A: 384×288, 640×512, and 1280×1024 depending on SKU.

Q: Which HIKMICRO Stellar 3.0 Thermal Riflescope models have <15mK sensitivity?
A: SH35L3.0, SH50L3.0, SQ35L3.0, SQ50L3.0, and SX60LS3.0.

Q: Which model has <18mK sensitivity?
A: The SX60L3.0 1280px model.

Q: Do all models run at 50Hz?
A: No. SX60L3.0 runs at 25Hz. Others operate at 50Hz.

Q: What does NETD mean?
A: It measures thermal sensitivity to small temperature differences.

Q: Which model offers the highest image detail?
A: The 1280×1024 SX60 models provide maximum resolution.

Image Processing & Display

Q: Do all HIKMICRO Stellar 3.0 Thermal Riflescope models include HSIS?
A: Yes. All listed variants use shutterless calibration.

Q: Which models use Image Pro 3.0?
A: SQ35L3.0 and SX60LS3.0.

Q: Which models use Image Pro 2.0?
A: SH35L3.0, SH50L3.0, SQ50L3.0, and SX60L3.0.

Q: What display resolution is used?
A: All models use 2560×2560 OLED displays.

Q: Does Zoom Pro work on every model?
A: Yes. Zoom Pro supports digital magnification clarity.

Laser Rangefinder & Ballistics

Q: Do all listed HIKMICRO Stellar 3.0 Thermal Riflescope models include an LRF?
A: Yes. All six SKUs include integrated 1000m LRF modules.

Q: What is the LRF accuracy?
A: ±1 metre.

Q: What is the minimum measuring distance?
A: 10 metres.

Q: Does every model support ballistic calculation?
A: Yes. Ballistic correction is available across all variants.

Q: Can ballistic data be customised?
A: Yes. Profiles can be configured within the device.

Battery & Durability

Q: What is typical battery life on the HIKMICRO Stellar 3.0 Thermal Riflescope?
A: Up to 9 hours on most models.

Q: Which model has shorter runtime?
A: SX60LS3.0 runs up to 6.5 hours at 50Hz.

Q: What batteries are used?
A: Two internal rechargeable cells and one 18650 external battery.

Q: Are all models IP67 rated?
A: Yes. All listed variants carry IP67 protection.

Q: What recoil rating is supported?
A: 1000g/0.4ms shock resistance.

Use & Compatibility

Q: What mounting system does the HIKMICRO Stellar 3.0 Thermal Riflescope require?
A: Standard 30mm scope rings.

Q: Which models suit woodland stalking?
A: SH35L3.0 and SQ35L3.0 with 35mm objectives.

Q: Which models suit long-range shooting?
A: 50mm and 60mm variants.

Q: Is recording available on all models?
A: Yes. All include onboard recording and 64GB storage.

Q: Does the scope connect to an app?
A: Yes. It connects to the HIKMICRO SIGHT app.

Technical Specification

	Hikmicro Stellar 3.0 384px 35mm Thermal Riflescope with LRF	Hikmicro Stellar 50mm 384px Sub 15mK with LRF and Ballistic Calculation	Hikmicro Stellar 3.0 640px 35mm Thermal Riflescope with LRF	Hikmicro Stellar 3.0 Pro 50mm 640px Sub 15 mK with LRF and Ballistic Calculation	Hikmicro Stellar 3.0 Pro 60mm 1280px Sub 18 mK with LRF and Ballistic Calculation	Hikmicro Stellar 3.0 60mm 1280px 50HZ with LRF
SKU	SH35L3.0	SH50L3.0	SQ35L3.0	SQ50L3.0	SX60L3.0	SX60LS3.0
HIKMICRO Stellar 3.0 Thermal Riflescope Thermal Module – Sensor & Core Performance
Image Sensor	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays	VOx Uncooled Focal Plane Arrays
Max Resolution	384 × 288	384 × 288	640 × 512	640 × 512	1280 × 1024	1280 × 1024
Frame Rate	50 Hz	50 Hz	50 Hz	50 Hz	25 Hz	50 Hz
Pixel Interval	12 μm	12 μm	12 μm	12 μm	12 μm	12 μm
Response Waveband	8 μm to 14 μm	8 μm to 14 μm	8 μm to 14 μm	8 μm to 14 μm	8 μm to 14 μm	8 μm to 14 μm
NETD	<15 mK (@25°C, F1.0)	<15 mK (@25°C, F1.0)	<15 mK (@25°C, F1.0)	<15 mK (@25°C, F1.0)	<18 mK (@25°C, F1.0)	<15 mK (@25°C, F1.0)
HIKMICRO Stellar 3.0 Thermal Riflescope Optics & Detection Performance
Lens (Focal Length)	35mm F1.0	50mm F1.0	35mm F1.0	50mm F1.0	60mm F1.0	60mm F1.0
Detection Range	1800m	2600m	1800m	2600m	3100m	3100m
Min Focusing Distance	3m	5m	3m	5m	6m	6m
Magnification	4.2×–24.2×	6.0×–24.0×	2.5×–24.5×	3.6×–26.6×	2.5×–28.5×	2.5×–28.5×
Field of View (H×V)	7.5°×5.7°	5.3°×4.0°	12.5°×10.0°	8.8°×7.0°	14.6°×11.7°	14.6°×11.7°
HIKMICRO Stellar 3.0 Thermal Riflescope Display & Imaging Technologies
Display	2560 × 2560, 1.03-inch OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
HSIS	Yes	Yes	Yes	Yes	No	No
Zoom Pro	Yes	Yes	Yes	Yes	No	No
Image Pro	Image Pro 2.0	Image Pro 2.0	Image Pro 2.0	Image Pro 2.0	Image Pro 3.0	Image Pro 3.0
Sync Pro	No	No	No	No	No	Yes
FFC Mode	—	—	—	—	Auto / Manual / External	Auto / Manual / External
HIKMICRO Stellar 3.0 Thermal Riflescope Laser Rangefinder & Ballistics
LRF Module	Built into lens (integrated)	Built into lens (integrated)	Built into lens (integrated)	Built into lens (integrated)	Built into lens (integrated)	Built into lens (integrated)
Max Measuring Range	1000m
Measurement Accuracy	±1m
Safety Class	Class 1
Wavelength	905 nm
Ballistic Calculation	Yes	Yes	Yes	Yes	Yes	Yes
HIKMICRO Stellar 3.0 Thermal Riflescope System & Recording Functions
Video Recording	On-board Video Recording
Audio Recording	Yes
Recoil-activation Recording	Yes
Storage	Built-in EMMC (64 GB)
PIP	Yes
Hot Track / Hotspot	Yes
Zeroing Profiles	5
Freeze Zeroing	Yes
HIKMICRO Stellar 3.0 Thermal Riflescope Power, Build & Durability
Battery Type	Dual internal rechargeable + 18650 external battery
Battery Life	Up to 9 hours continuous running (@25°C)
USB-C Power	5V DC/2A, USB Type-C, QC3.0 supported
Recoil Resistance	1000g / 0.4ms
Protection Level	IP67
Mounting	Standard 30mm
Working Temperature	-30°C to 55°C
Center Height	32mm	36mm	32mm	36mm	41mm	41mm
Weight (without external battery)	830g	870g	830g	860g	1000g	1150g

HIKMICRO Stellar 3.0 Thermal Riflescope Manual and Datasheets

Hikmicro Stellar 3.0 User Manual English

Hikmicro Stellar 3.0 Datasheet SH35L 3.0

Hikmicro Stellar 3.0 Datasheet SH50L 3.0

Hikmicro Stellar 3.0 Datasheet SQ35L 3.0

Hikmicro Stellar 3.0 Datasheet SQ50L 3.0

Hikmicro Stellar 3.0 Datasheet SX60L 3.0

Hikmicro Stellar 3.0 Datasheet SX60LS 3.0
